Customised to suit any application, from permanent outdoor parking surveillance, to easily deployed temporary situations, Network Imaging Solutions is able to custom design and build a MOBOTIX IP Video solution to suit. Using state of the art technology, solar and battery back up, and if required multiple cameras for large deployment areas.
MOBOTIX has developed and manufactured IP video systems in Germany since 1999.
MOBOTIX stands out on account of its high level of reliability. All outdoor cameras are subjected to a stress test for temperatures between -30 degrees C and +60 degrees C. They work without additional components, without heating or cooling and are completely solid state.
The decentralised architecture means that a central computer is not required and the network load is minimal. The intelligent cameras for MOBOTIX process and store image data themselves, trigger events and, in the event of remote access, manage the frame rate and resolution depending on available bandwidth.
An intelligent IP video system from MOBOTIX allows you to reduce total costs. The investment pays for itself after a short time and free-of-charge software and updates ensure it is a secure and smart investment.
MOBOTIX delivers a comprehensive package, starting with the microSD card for storage management and HD-audio. With VoIP telephony right through to motion detection software, without false alarms, and the professional video management system with no license fees.
The MOBOTIX 7 Platform - Open to New Ideas. The platform opens up this system to all user groups for the first time. The platform already includes special apps that cover a significant number of industry specific, individual requirements. Some apps are preinstalled as "Certified Apps" on the M73. In addition, the platform is open for apps developed by our partners and customers. The possibilities now grow with the customers needs.
Core certified Vaxtor OCR apps are Vaxtor LPR and Vaxtor Containers.
Vaxtor Automatic License Plate Recognition (ALPR) boasts global country coverage and reads license plates up to 160 km/h. The app utilizes white and black lists for automated access control, e.g., gates and alarms.
Vaxtor Container Code Recognition identifies standard cargo shipping container codes with over 99% accuracy. It identifies a container's owner, equipment category, unique serial number, manufactured dimension, and container type.
Detected vehicle container data and codes are sent directly via json/xml to the back-end.
Waterproof and robust, the latest generation of our successful M camera models, the M73, features increased modularity as well as the latest MOBOTIX 7 system platform with intelligent Plug-In App concept. The result is a system completely unrivaled in terms of performance, functionality and design.
-
Platform with the most flexible codec support: H.264, H.265, MxPEG+ and MJPEG
-
ONVIF Profile G, S, T conformity guarantees utmost interoperability
-
Increased modularity with flexible usage usage of a combination of up to three sensor and functional modules
-
2 x 4K UHD resolution
-
Can optionally be used with an exchangeable CIF/VGA thermal sensor module
-
Wide Dynamic Range (WDR)
-
Robust in any environment: -40 to 65C, IP66, NEMA 4X and IK10
The MOBOTIX M ONE is at the cutting edge of IP video software. It offers 30 fps at 4K resolution and a large selection of optics (fixed focal lengths and varifocal lenses). It has integrated AI based analytics and recording and uses a high performance transmission of encrypted event metadata instead of image data.
-
Camera integrated AI based Activity Sensor ONE
-
ONVIF Profile G, S, T conformity
-
4K images with outstanding WDR and low light performance
-
Large selection of optics
-
Robust in any environment: -40 to 65C, IP66, IK10, MTBF: 100,000 h
The newly released MOBOTIX S ONE Dual performs AI based video analysis in parallel on two independent sensor channels. High performance, reliable and without reducing the frame rates (up to 30 fps per sensor, in parallel). It is optimized for applications where overview, space requirements, robustness, and reliability are crucial.
-
Two sensor channels, two analytics tasks simultaneously
-
Ultra robust special plastic (PBT-30GF) and black aluminium
-
Object based event logic per sensor
-
Self sufficient real-time processing
-
2 x 4K UHD, maximum of 2 x 30 fps.
-
120 dB WDR Dynamic Range (WDR)
-
Six lens options
-
Robust in any environment: -40 to 65C, IP66, IK10, NEMA 4X

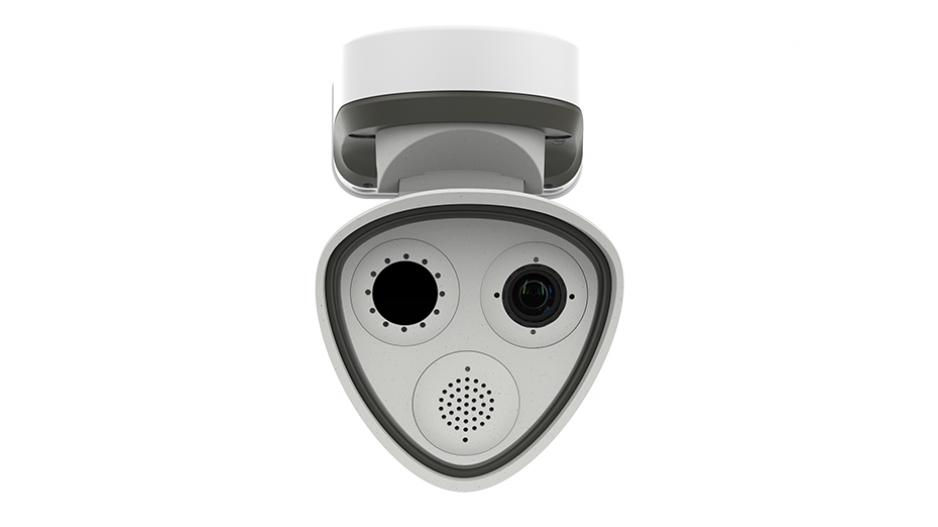

MOBOTIX has launched a new series of M73 thermal radiometry (TR) models to generate automatic alarms, defined by temperature limits or temperature ranges, which is vital to detect potential fire or heat sources. Up to 20 different temperature triggers can be defined within the defined TR windows or the whole sensor image over the temperature range of -40 to 550 degrees C can be used. VGA resolution with Thermal Radiometry and Thermal Distance Compensation the latest sensors offer thermal sensitivity of 30 mK and a maximum frame rate of 30 fps. MOBOTIX thermal dual camera systems also offer thermal overlay to localize the hot spot in the visual image.
When it comes to building safety, the EN 54-10 certified MOBOTIX thermal TR cameras are the first choice. The certified systems comply with the regulations for building safety in accordance with the EU Construction Products Regulation, whether as a single detector or integrated in fire alarm systems.
MOBOTIX thermal radiometry (TR) cameras feature a calibrated thermal image sensor. The cameras measure thermal radiation across the entire image area and trigger an event if the thresholds are exceeded. MOBOTIX Thermal TR technology impresses with its fast, low cost installation. Heat is detected before it reaches the ceiling and, unlike aspiring smoke detectors, the MOBOTIX M73 and S74 do not rely on the development of smoke to work. EN 54-10 certification also allows the use of additional optical sensors. This allows you to record a classic image in the event of alarms, which facilitates the preservation of evidence.
A MOBOTIX dual camera system can automatically switch from the thermal sensor to the optical sensor, producing visible high resolution video in the case a moving object was detected within a certain predefined area of interest.
